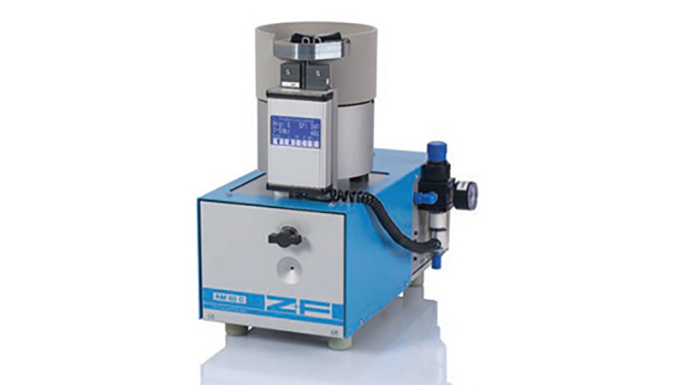

AM 02.1 C

The AM 02.1 C is for uninsulated (0.14 -0,75 mm2 (AWG 26 -18)) Z+F ferrules of small cross-sections.

Special features
� Easy tool change
� Short tooling time
� Crimp quality conforms to DIN 46228
� Compact design

AM02.1 C
Technical data

Crimping range
0,14 -0,34 mm2
(AWG 26-18)

Crimping length
CL 5-10 mm (0.2/0.39 in.)

lnfeed length
16 mm (0.63 in.) + CL*

Cycle time approx.
1,5 s

Power supply
100 -240; 50/60 V; Hz; VA

Air pressure
5,5 bar (79.77 psi)

Dimensions
(B x T x H) 280 x 410 x 390 mm
(w x d x h) (11.02 X 16.2 X 15.4 in.)

Weight 23 kg (50.71 lbs)

Part Number V10CA000043
