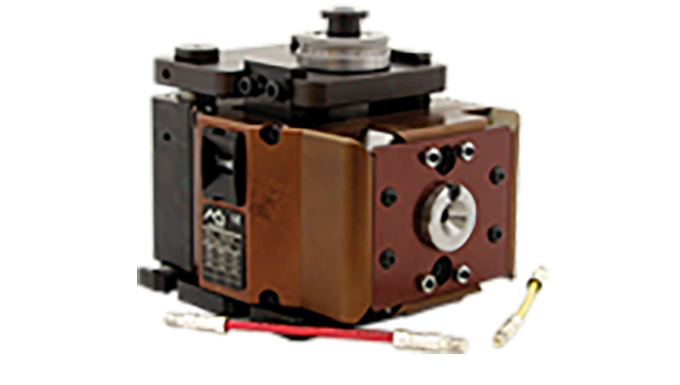

FMK - Heavy Duty 4 Points Crimp Applicator

CRIMPING HEIGHT
(5.346?) 135.8mm
STROKE
(1.1580/1.575?) 30mm or 40mm
TERMINAL PITCH
not / whit binding
TERMINAL THICKNESS
(until to 0.078?) until to 2mm
WIRE SECTION
max 25mm2(3 awg)
FEEDING SYSTEM
air pressure 5/6 Bar
WEIGHT
(16.3 lb) 7.4 Kg
DIMENSION (mm)
W 163 x H 145.5 x D 200
DIMENSION
W 6.42 x H 5.72 x D 7.87
CONTINUOUS REGULATING HEAD
(0.00039?) 0.01mm resolution.
(0.106?) 2.7mm range
Depth sensor for proper placement of the contact.
Independent regulation crimping, front easy access.
Ability to handle semi-automatic contacts loose.
Applicable to all versions of presses Mecal from model P107C.
Quick and easy process for the replacement of crimping dies heavy duty 4 points crimp applicator FMK.
