Unic-LS

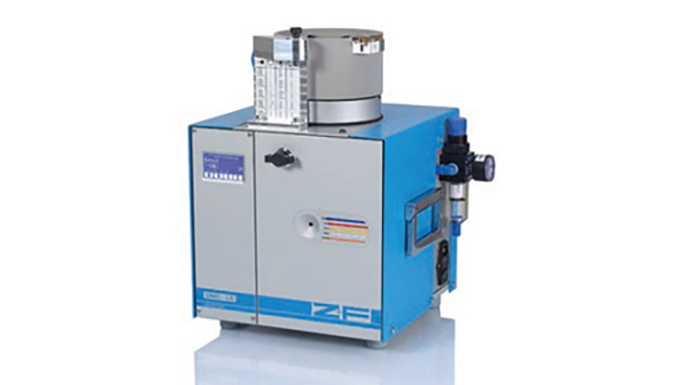

The UNIC-LS is an electropneumatic driven stripper-crimper. The UNIC-LS allows quick and reliable processing of loose insulated Z+F ferrules for cross-sections from 0.5 up to 2.5 mm2 (AWG 20-14) with a crimping length of 6, 8, and 10 mm.Insulated Z+F ferrules for tri-rated wires (special size "S") can also be processed.

UNIC-LS
Technical data

Crimping range
0,5-2,5 mm2 (AWG 20-"14)

Standard Crimp Shape:
Trapez

Crimping length
CL 6 / 8 / 10 mm (0.24 I 0.31 I 0.39 in.)

Infeed Length
27 mm (1.06 in.)+ CL*

Cycle Time Approx:
1,5 s

Power Supply:
100 -2V4;0H;z 5;0V/A6 0; 100

Air Presure:
(5.5 bar) 79.77psi

Dimensions
390 x 330 x 460mm
(15.4 x13 x 18.1 in)

Weight
31kg (68.34 lbs)
