Unic-LZ

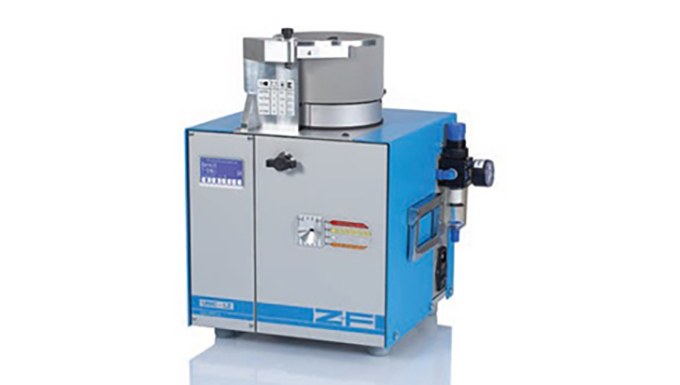

The universal UNIC-LZ is an electropneumatic stripper-crimper for quick and reliable processing of loose Z+F twin ferrules in the range of 2 x 0.5 up to 2 x 1.5 mm2 (AWG 2 x 20 - 2 x 16) with a crimping length of 8 mm.

UNIC-LZ
Technical data

Crimping range
2 x 0,5 - 2 x 1,5 mm2
(AWG 2 x 20 - 2 x 16)

Crimping length
CL 8 mm (0.31 in.)

lnfeed length
35 mm (1.38 in.)

Cycle time approx.
1,5 s

Power supply
100- 240; 50/60; 100 V; Hz; VA

Air pressure
5,5 bar (79.77 psi)

Dimensions
(B x T x H) I 390 x 330 x 460 mm
(w x d x h) (15.4 X 13 X 18.1 in.)

Weight
31 kg (68.34 lbs)
