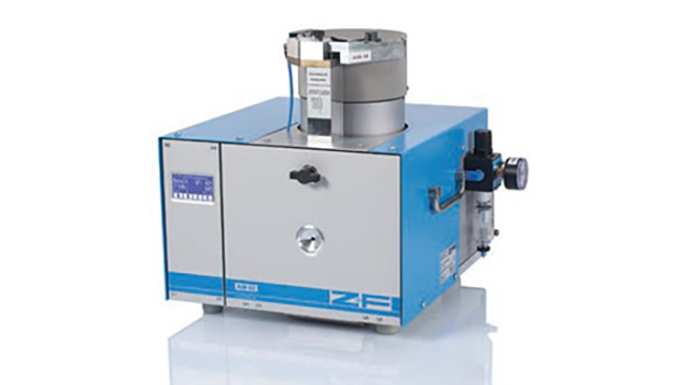

AM 02 Universal

The AM 02 universal is an electropneumatic, universal stripper-crimper, for rapid and
reliable processing of loose insulated Z+F ferrules from 0.5 up to 2.5 mm2 (AWG 20 -
14) with a crimping length from 6 to 12 mm. Additional tool kits are optional available
for 0.34/4 mm2 (AWG 22/12).

Special features
� Easy tool change
� Short tooling time
Crimp Shape:
Standard: Quadro
Optional: Trapez

* CL = Crimplange in mm
* CL= Crimping length in mm / in.


AM 02 universal
Technical data

Crimping range (AWG 20 -14)
Optional tool kits
0.34/4 mm2 (AWG 22/12)

Crimping length CL
6-12 mm (0.24 - 0.47 in.)

lnfeed length
28 mm (1.10 in.)+ CL*

Cycle time approx.
1,5 s

Power supply
100 -240; 50/60; 100 V; Hz;VA

Air pressure
5, 5 bar (79.77 psi)

Dimensions
(B x T x H) 470 x 420 x 425 mm
(w x d x h) (18.5 X 16.5 X 16.7 in.)

Weight
38 kg (83.78 lbs)

Part Number: V10AM001011
