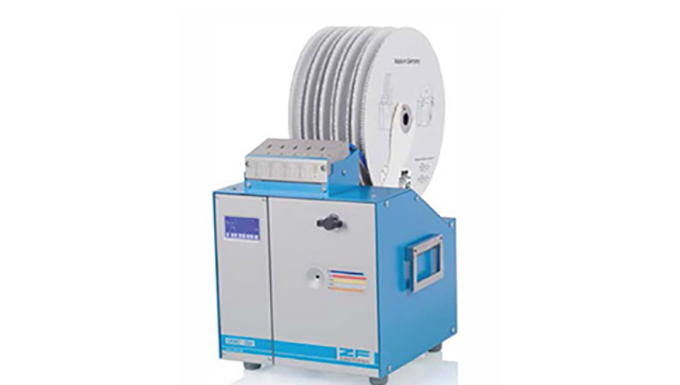

Unic-GV
Reeled Insulated Ferrule Electropneumatic Strip/Crimp Machine - No Tooling Changes (AWG 20-14) - 8 or 10mm Ferrules
The UNIC-GV is an electropneumatic benchtop stripper-crimper, which allows processing five ferrules on reel with different cross sections. Ferrules on reel in the range of 0.5 -2.5 mm2 (AWG 20 -14) with crimping lengths of 8 or 10 mm can be processed with no down time. The user simply chooses the cross-section on a touch display. Ferrules on reel for multi standard conductors can also be processed.
UNIC-GV
Technical data
Crimping range
0,5-2,5 mm2 (AWG 20-14)
Crimping length
8 / 10 mm (0+F19.31 / 0.39 in.)
Standard Crimp Shape:
Trapez/Trapezium
lnfeed length
27 mm (1.06 in.)+ CL
Cycle time approx. < 2,0 s
Power supply
100-240; 50/60; 16 V;Hz;VA
Air pressure
5,5 bar (79.77 psi)
Dimensions
(B x T x H) 335 x 485 x 565 mm
(w x d x h) (13.2 X 19.1 X 22.2 in.) 1,0/8N
Weight
22 kg (48.5 lbs)
