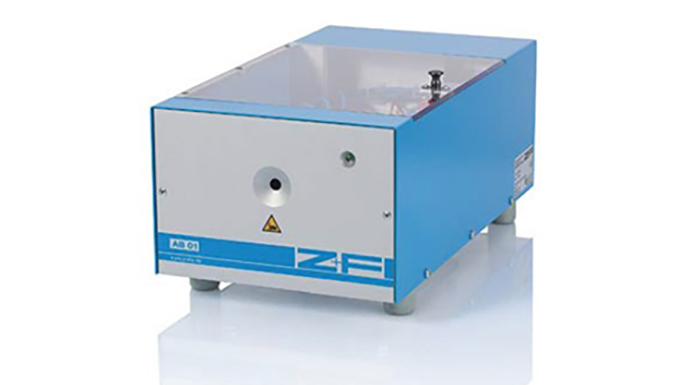

AB01 Universal Dismantling Machine

The dismantling machine AB 01 universal is an electropneumatic driven machine. Exact dismantling of different insulated wires up to an outside diameter of 11.9 mm (0.47 in.) is possible. The settings are very easy to adjust and the stripping and take-off lengths can be selected steplessly. Through the use of a star knife, different cable diameters can be machined (inches): 0,14 / 0,17 / 0,24 / 0,30.

Technical data
AB 01 universal

Dismantling area*
3,5 � 11,9 mm (0.14 - 0.47 in.)

Dismantling length
25 � 115 mm (0.98 - 4.53 in.)

Pull-off length
20 � 120 mm (0.79 - 4.72 in.)

Infeed length
80 mm (3.15 in.)

Cycle time approx.
3,0 s

Power supply
100 � 240; 50/60; 16 V; Hz; VA

Air pressure
5,5 bar (79.77 psi)

Dimensions (w x d x h)
254 x 230 x 520 mm (10 x 9.06 x 20.5 in.)

Weight
17 kg (37.48 lbs)
