AI04

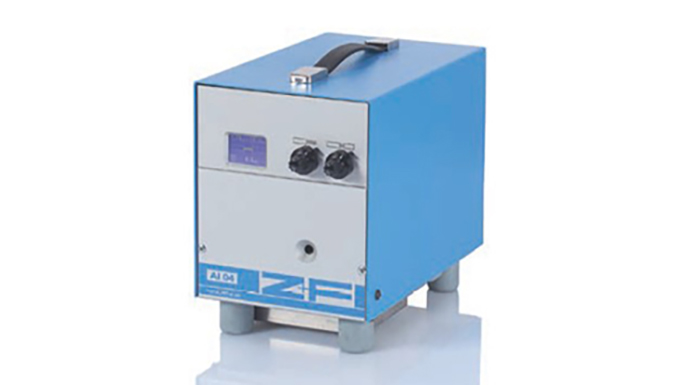

The AI 04 is a stripping machine driven by an electric motor. Exact stripping of different
insulated wires up to an outer diameter of 8 mm is possible. Adjustments are very
easy to handle with an adjustment knob.
Special:
An integrated battery allows up to 7,500 working cycles when fully charged and
without external power supply

Technical data
AI 04 E

Stripping range
2,5 � 16 mm� (AWG 14 � 6)

Stripping length
3 � 20 mm (0.12 - 0.79 in.)

Pull-off length
3 � 20 mm (0.12 - 0.79 in.)

Infeed length
22 mm (0.87 in.)

Cycle time approx.
1,0 s

Power supply
100 � 240; 50/60; 100 V; Hz; VA

Dimensions
(B x T x H) 190 x 295 x 230 mm
(w x d x h) (7.5 x 11.6 x 9.06 in.)

Weight
10,4 kg (22.93 lbs)
