MSMP – Two Post Die

DESCRIPTION

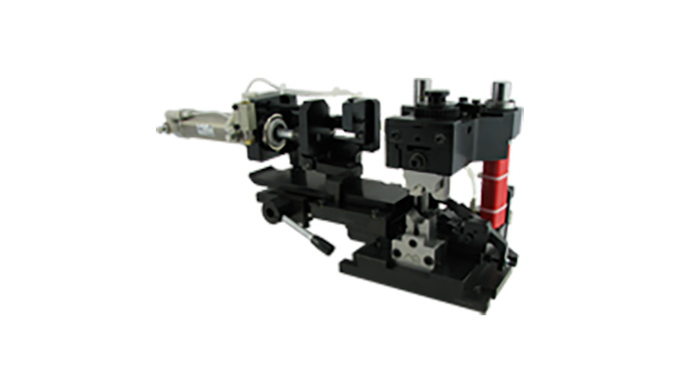

Two Post Die
CRIMPING HEIGHT
142,6mm (5.61″)
STROKE
50mm (1.97″)
TERMINAL PITCH
not binding
TERMINAL THICKNESS
1.2 to 1.5mm (0.047″ to 0.059″)
WIRE SECTION
max 25mm2
FEEDING SYSTEM
air pipe Ø4mm, 5/6 Bar
WEIGHT
17Kg (37.4lb)
DIMENSION (mm)
W 510 x H 210 x D 190
DIMENSION (“)
20.1″ x 8.3″ x 7.5″
CRIMP HEIGHT ADJUSTMENT
4 pads “H” head
MSMP two post die is an absolute new entry into the Mecal produts range. It can crimp terminals in carrier strip, with left-to-right feeding, and it has some new features compared to the existing two post dies. The upper plate is lighter and it’s equipped with a continuous regulation head (0,05mm), which allows a precise control on the conductor crimping height, whereas the insulation crimping can be set up by a new system placed on the front side of the die. This system is easily adjustable by a screw. The movement of the plate has been improved by means of two recirculating ball bushings. The MSMP is also equipped with a non-resettable 7 digits piece counter. Suitable presses for the MSMP are the P40 or P80, with the crimp force analyzer CFA/CPM designed by Mecal.
