AM 03 Universal

Strip/Crimp four point crimper for loose, turned contacts (AWG 26-14)

AM 03 Universal

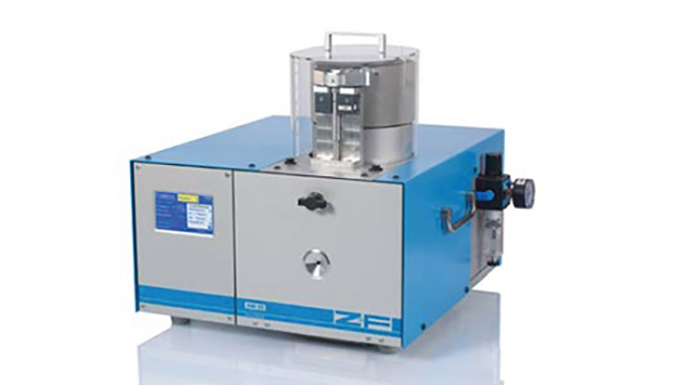

The stripper-crimper AM 03 universal is an electropneumatic driven machine for rapid and reliable processing of loose male and female contacts. The contacts are automatically fed by a feeding bowl. In the range of 0.14 up to 2.5 mm2 (AWG 26 -14) wires and contacts can be crimped. Standard is a 4/8-indent crimp corresponding to MIL 22520/1-01. The adjustment of the stripping and crimping-depth is motorized. Different values for 50 programs can be stored. Adjustment and programming is done with the touch display. The touch display shows all important data, functions and errors. The machine can also be converted for different contacts by using specific tool kits. All tools are easily replaceable.

� Z+F crimp force monitor

AM 03 universal
Technical data

Crimping range
(0,14-0,37 mm2) 0,5 -2,5 (4) mm2
(AWG 26-14) (AWG 20-14 (12)

lnfeed length
36 mm (1.42 in.)

Cycle time approx.
3,0 s

Power supply 100-240; 50/60; 185
V; Hz; VA

Air pressure
5,5 bar (79.77 psi)

(B x T x H) 560 x 520 x 420 mm
(w x d x h) (20.9 X 19.7 X 18.1 in.)

49 kg (108 lbs)

Compatible with the following Ferrule manufacturers:
Amphenol: C 146
Contact: HD+HE
Harting: Han D + Han E
lime: CD (10A) + CC (16 A)
Weidmueller: HOC HD + HOC HE
Phoenix: CK 1,6 + CK 2,5
Wieland: Revos Flex 1,6/2,5 + Revos Basic
